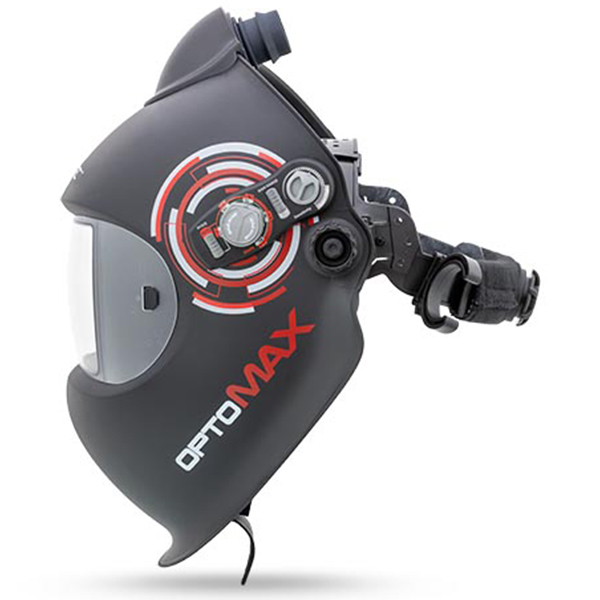

Perfect view during welding thanks to world leading ADF technology from Optrel
Fully automated shade level adjustment for any welding procedure in the 5-13 range.
Natural-colour view in the entire protection range and ultra-HD quality in classes 1/1/1/1.
Sensor slide allows you to manually adjust the ADF sensor from 80° to 60° to prevent your ADF sensor from mistakenly reacting to welding processes nearby.
External adjustments allow all important function to be at your fingertips including shade level, grind mode and other features
Enlarged viewing area 50×100 mm
In-built air distribution system delivers the air right into the breathing zone and the highest level of respiratory protection – TH3
Compatible with CleanAIR® Basic, CleanAIR® Aergo, and CleanAIR® Chemical 2F and 3F PAPR systems and CleanAIR® Pressure Flow Master Airline system
Areas of application:
Any electric arc welding process Electrode Welding (Stick Welding, SMAW) / MIG / MAG (GMAW) / GMAW High melting rate process / Flux Cored Wire Welding / TIG welding (GTAW) / Plasma Arc Welding
Plasma cutting & Oxy-gas Welding
Grinding in Grind Mode.
Note: Prohibited for laser welding!
Specifications
Weight
695g
ADF Dimension
110x90x7 mm
Shade Level
DIN 5–13 Open state shade DIN 4
Viewing Area
50×100 mm
Hose Connection
QuickLOCK™
Certification
EN 379 1/1/1/1, EN 175 B, EN 12941 TH3, EN 14594 3B
